HZ0103003
|
Model |
HZ-HA-270p |
|
Acoustic |
|
|

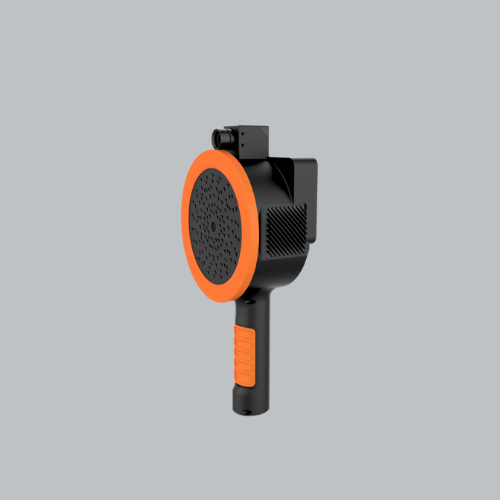

Microphones |
138 Microphones |
|
Dynamic Range of Camera |
-30dB ~ 120dB |
|
Dynamic Range of Sensor |
30dB ~ 120dB |
|
Minimum Imaging Sensitivity |
10kHz：1dB SPL 20kHz：-10dB SPL 30kHz：-6dB SPL 40kHz：3dB SPL 50kHz：6dB SPL 60kHz：20dB SPL |
|
Operating Distance |
0.3m ~ 200m |
|
Horizontal Spatial Resolution |
150mm |
|
Dynamic Range of multiple targets |
0 ~ 18dB |
|
Frequency Bandwidth |
2kHz ~ 100kHz |
|
Microphone Self-diagnosis |
Support |
|
General |
|
|
Thermal Sensor |
YES |
|
Camera |
13MP |
|
Camera FOV |
75° |
|
Low Lux |
0.5Lux/F2.0 |
|
Photo Image Resolution |
4K (3840*2160), 1080P |
|
Digital Zoom |
8x |
|
Video Image Resolution |
1920*1080 @30fps |
|
Storage |
Internal 64GB |
|
Video record |
5min |
|

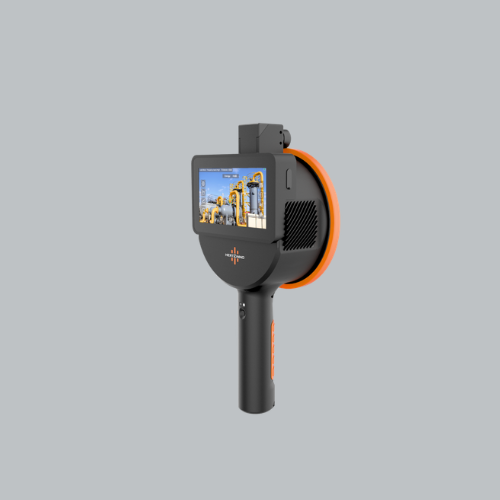

Display* |
720P, 5-inch Capacitive Touch Screen |
|
Wi-Fi |
2.4G/5G |
|
USB |
TYPE-C |
|
Battery Operating Time |
4h |
|
Direct Charging Type |
Type-C |
|
Protection Level |
IP54 |
|

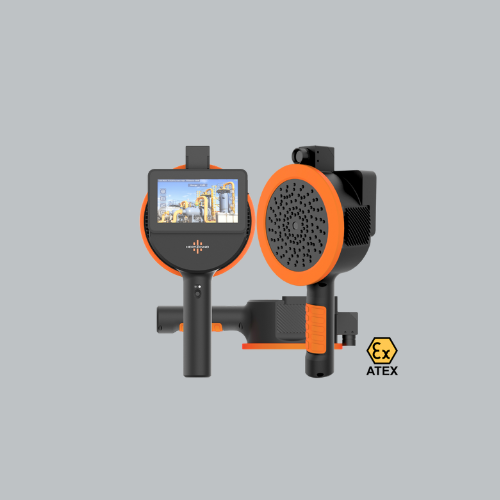

ATEX |
Ex ib IIIC T80°C Db Ex ib IIC T4 Gb |
|

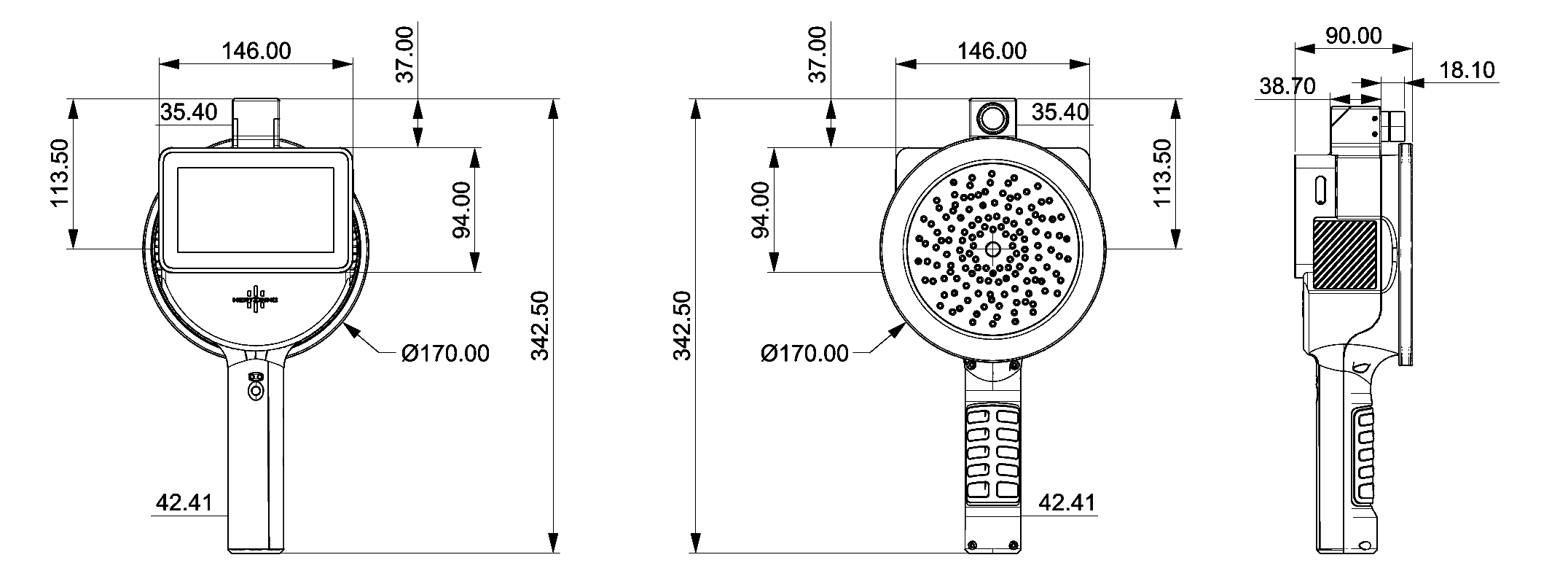

Dimension |
342.5mm* 167mm* 89.9mm |
|
Working Temperature Range |
-20℃ ~ 50 ℃ |
|
Storage Temperature Range |
-30℃ ~ 60 ℃ |
|
Humidity |
10% -95% |
|
Applications |
|
|
Application Scenarios |
Partial discharge/Gas leakage/Vibration |
|
Partial discharge Type Prediction |
Corona/Floating/Surface/Noise |
|
Leaks Rate |
>0.0032L/min from 2.5m |
|
Thermal Sensor |
640*512 |
|
Frame |
30Hz |
|
FOV |
48.3°(H) x 38.6°(V)，62.4°(D) |
|
Detector Type and Pitch |
Uncooled microbolometer,12μm |
|
Spectral range |
8~14μm |
|
Temperature Range |
-20°C ~ 550°C |
|
Accuracy |
±2°C or ±2% of reading（whichever is greater） |
|
FOV of Lens |
32.9°x26.6° |
|
Geometrical Resolution |
0.92mrad |
|
NETD |
≤40mk |
|
Color Palettes |
Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
No. To comply with strict ATEX intrinsically safe standards (Ex ib IIIC T80CDband Ex ib IIC T4 Gb)
