HZ0103002
| Fonctionnalité | Spécification |
| Réseau de microphones | MEMS numérique à 144 canaux |
| Précision de la localisation | ±1° (≤1cm à 1m, 40kHz) |
| Applications de détection | Décharge partielle, fuite de gaz, défauts mécaniques |
| Traitement du signal | Formation de faisceaux en temps réel et classification par IA |
| Visualisation des données | Carte thermique acoustique + superposition optique HD |
|

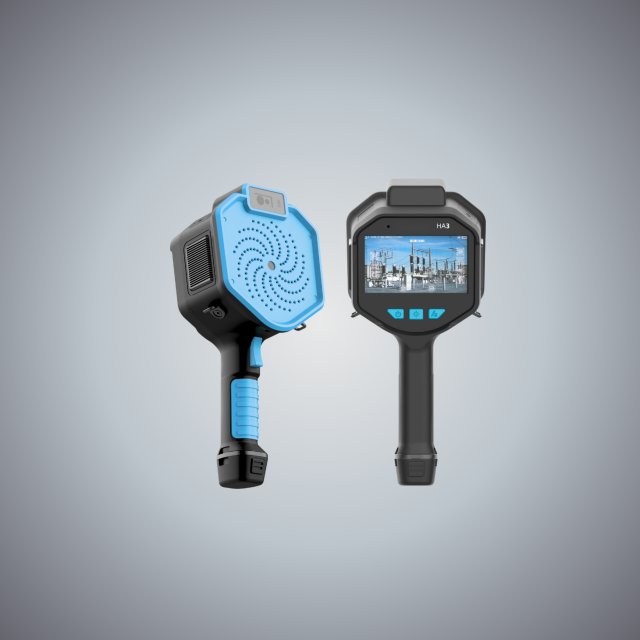

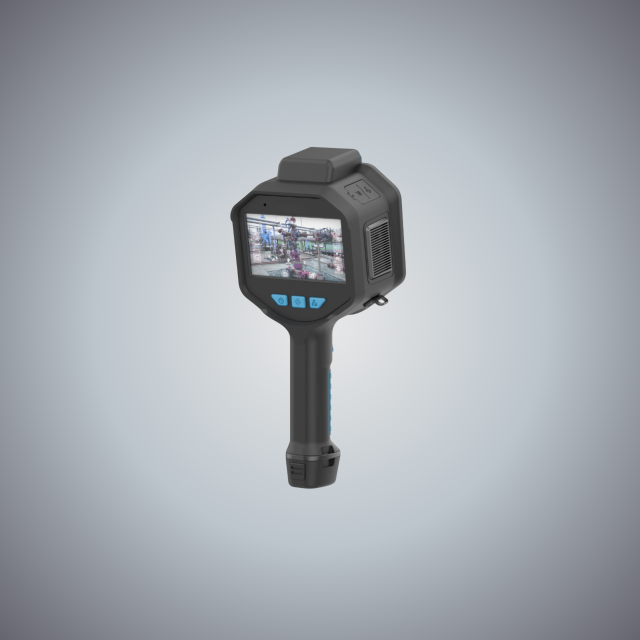

Model |
HA3 |
|
Acoustic |
|
|
Microphones |
144 Digital MEMS Microphones |
|
Frequency Bandwidth |
2kHz ~ 150 kHz |
|
Dynamic Range |
-30 dB~120 dB |
|
Minimum Imaging Sensitivity |
10 kHz: 3 dB SPL 20 kHz: -15 dB SPL 40 kHz: -5 dB SPL 60 kHz: 10 dB SPL 80 kHz: 35 dB SPL 100 kHz: 45 dB SPL |
|
Operating Distance |
0.3 m ~ 210 m |
|
Dynamic Range of Multiple Targets |
0 dB~18 dB |
|
Space Resolution |
≤1 cm @1 m, 40 kHz |
|
Microphone Self-Check |
Support |
|
Laser Module |
|
|
Sensor |
Class IIIR LASER TYPE |
|
Detecting Gas Type |
Methane |
|
Measuring Principle |
TDLAS |
|
Detecting Distance |
30m(80% reflectance) |
|
Static Detection Limit |
5ppm*m |
| Response Time |
0.2s |
|
Measuring Range |
0 ~ 50,000ppm*m |
|
General |
|
|
Optical Camera |
13 MP |
|
Camera FOV |
72°±3° |
|
Fill Light |
LED Light |
|
Image Resolution |
4K ( 3840 × 2160 ), 1080P |
|
Digital Zoom |
1/2/4/8 |
|
Video Image Resolution |
1920 × 1080 @ 30 fps, 1920 × 1080 @ 60 fps |
|
Storage |
128 GB micro-SD Card |
|
Annotation |
Text, Voice, Photo, Tags |
|
E-Compass |
Support |
|

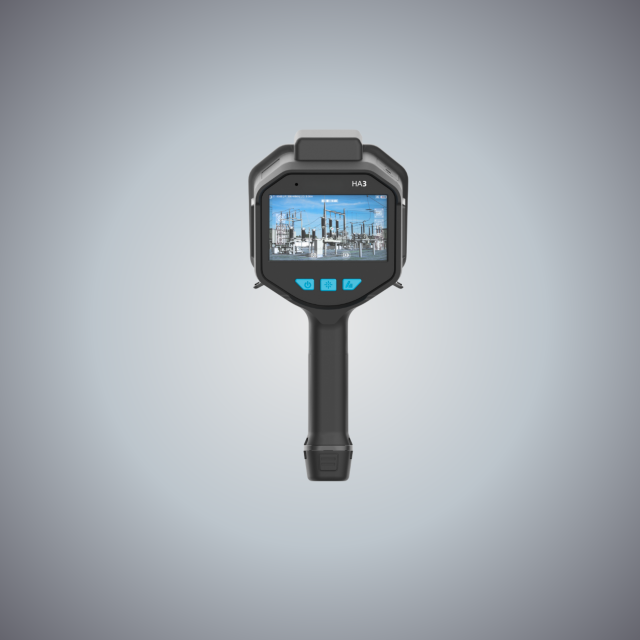

Display |
5-inch, Capacitive Touch Screen, 1920*1080 |
|
Wi-Fi & Bluetooth |
IEEE 802.11a/b/g/n/ac 2.4G/5G & BT4.2 |
|
Weight |
Less than 1.2 kg |
|
Dimension |
333 mm*152 mm*115 mm |
|
Working Temperature Range |
-20℃ ~ 55 ℃ |
|
Storage Temperature Range |
-40℃ ~ 85 ℃ |
|
Humidity |
10%~95% ( non-condensing ) |
|
Laser Distance Measurement |
0.1 – 30 m(±1 mm) (Laser Class II, 620 -690 nm, ＜1 mw) |
|
Data Transmission |
USB, Wi-Fi, Bluetooth |
|
USB Port |
Type-C |
|
Battery |
Li-Ion Rechargeable Battery |
|
Operation Time* |
4 hours for use |
|
Charging Time |
2.5 h ( from 10% to 90%) PD Fast Charging |
|
Protection Level |
IP54 |
|
ATEX |
Ex ib lIC T4 Gb Ex ib llIC T80℃ Db |
|
Tripod Mount |
UNC 1 /4-20 |
