Application-Aware Recognition
Identifies excavation machinery, pig passage, mining equipment, heavy vehicles, and background vibration according to the selected model.
Edge AI Ground Activity Monitoring
HZ-PS-20A Smart Pipeline Sentinel
A solar-powered intelligent monitoring node that converts ground vibration into classified, located, and traceable field events for long-distance oil and gas pipeline protection, cleaning-pig passage detection, and illegal mining detection.
10–200 HzGround-vibration frequency response
500 HzVibration signal sampling rate
Dual 1080PAutomatic site image and video verification
< 30 mWContinuous low-power monitoring mode
-40 to 70°COperating temperature range
Sensing Principle
Detect activity through the ground—not through direct pipe contact.

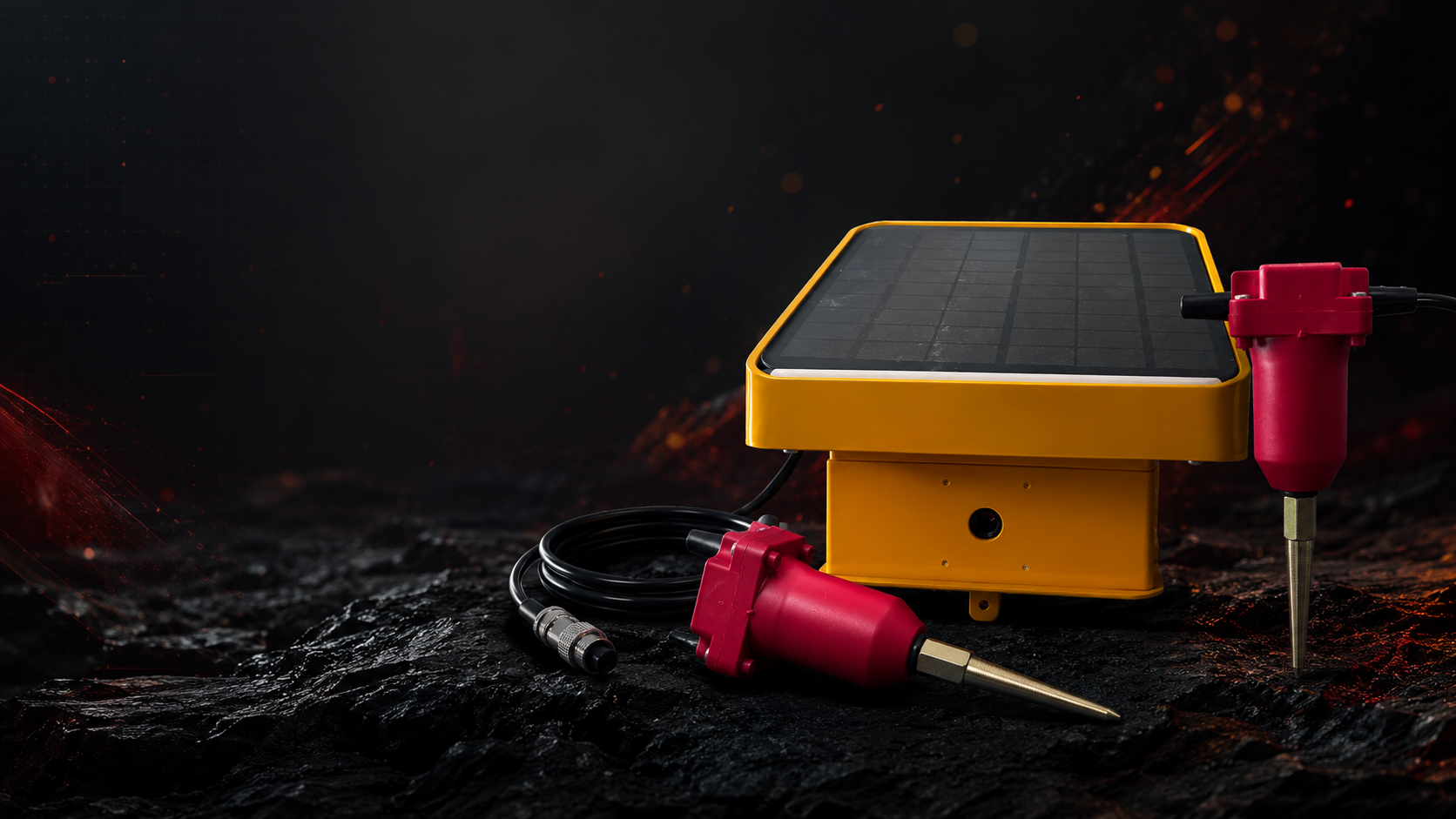

The yellow monitoring unit is installed above ground. Its red high-sensitivity vibration sensor is buried in the surrounding soil near the monitored route or boundary. The sensor captures vibration and acoustic energy transmitted through the ground while the edge processor identifies application-specific events.
Important installation note: the buried sensor does not touch, clamp onto, or connect directly to the pipeline wall. For pigging applications, it detects the signal transmitted through the surrounding soil as the cleaning pig approaches, passes, and moves away.
01
Continuous low-power sensingThe MCU maintains continuous vibration acquisition with low power consumption.
02
Local edge classificationThe ARM and Linux platform analyze signal features and classify the configured event type.
03
Remote evidence and location4G, BeiDou/GPS, and dual cameras provide event location, imagery, and traceability.
Core Capabilities
A complete unattended monitoring node for remote field deployment.
Field sensing, edge intelligence, visual verification, communications, positioning, and independent power are integrated in one compact system.
MCU + ARM Architecture
Combines continuous low-power acquisition with Linux-based edge processing, classification, and local event management.
Dual-Camera Verification
Automatically captures site photos and video for intrusion and mining events, helping operators verify activity remotely.
Independent Solar Operation
A top-mounted solar panel and low-temperature lithium battery support unattended use in locations without utility power.
4G + BeiDou/GPS
Uploads event type, time, device status, imagery, and position to the monitoring platform or control center.
Harsh-Environment Design
IP65 protection and a -40°C to 70°C operating range support long-term deployment in remote outdoor environments.
Three Core Applications
One field platform, configured for three different operating objectives.
The same hardware architecture can be configured with different event models, deployment logic, alert rules, and evidence workflows.
APPLICATION 01
Oil & Gas Pipeline Right-of-Way Monitoring
Monitor selected high-risk sections along long-distance transmission pipelines. Detect excavators, breakers, drilling equipment, heavy vehicles, and unauthorized ground activity before buried assets are threatened.
APPLICATION 02
Pipeline Pig Passage Detection
Deploy monitoring nodes at selected checkpoints to record the characteristic signal as a cleaning pig approaches, passes, and moves away, providing passage-time and route-progress references for field teams.
APPLICATION 03

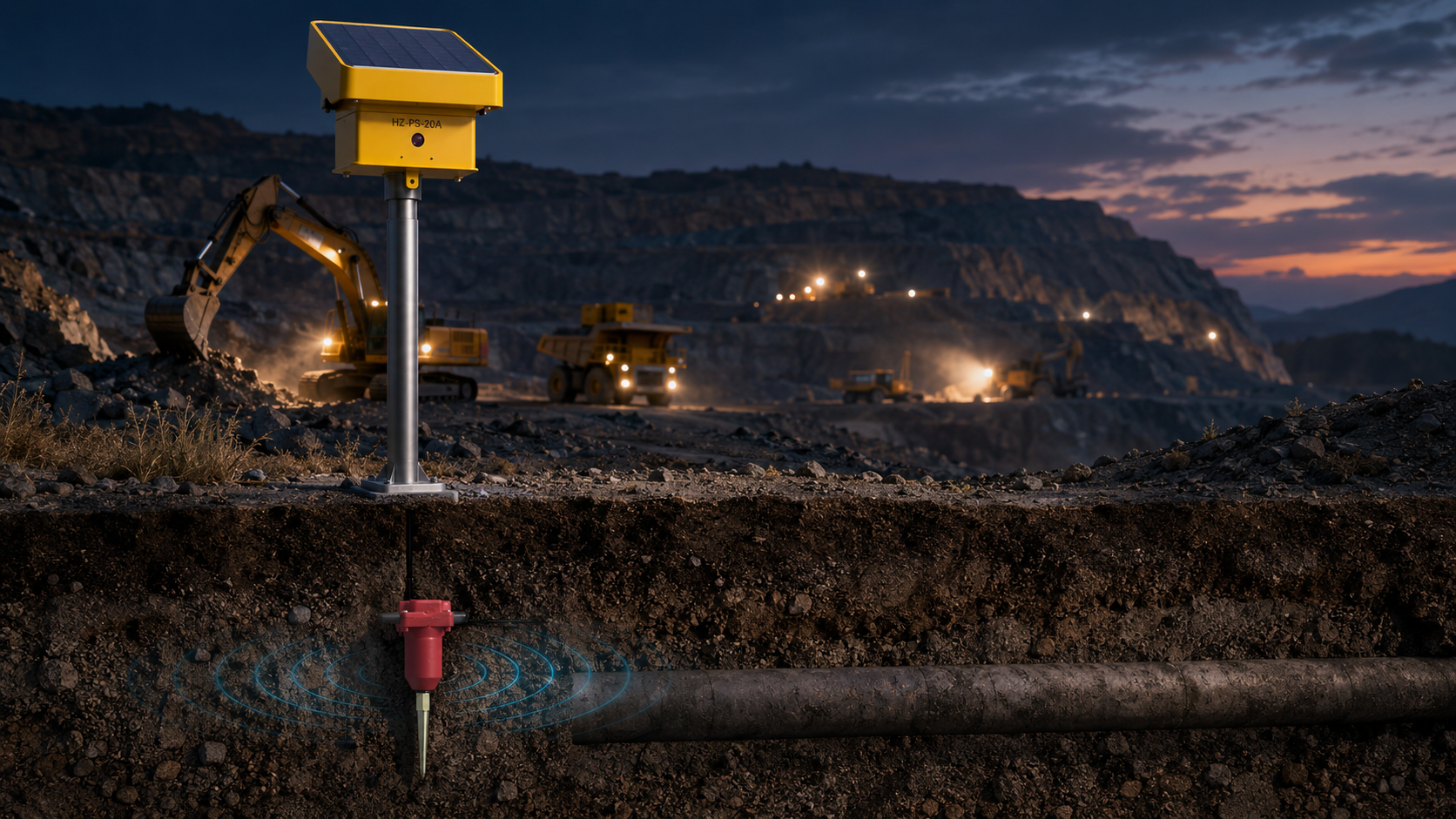

Illegal Mining & Boundary Encroachment Detection
Identify abnormal vibration from excavators, drilling rigs, breakers, and heavy vehicles around selected mine boundaries or protected resource areas, then activate remote visual verification.
Application boundary: HZ-PS-20A is positioned for long-distance oil and gas pipeline corridors, selected pigging checkpoints, mine boundaries, and protected resource areas. It is not positioned as a city gas distribution-network monitoring product.
Risk-Based Deployment
Node spacing follows risk—not a fixed dense interval.
Final quantity and spacing depend on the application, soil, burial depth, background vibration, terrain, communications, and required response time.
Remote, low-population corridors
Nodes can be several kilometers apart when deployed at selected control points or priority sections.
High-risk or populated locations
Spacing may be reduced to several hundred meters near road crossings, active construction, historical incident points, or pigging checkpoints.
Mine boundaries and protected zones
Nodes are placed around selected access routes, excavation-prone areas, and boundary sections based on site testing.
Monitoring Workflow
01
SenseThe buried sensor continuously captures ground-borne vibration and acoustic signals.
02
ClassifyEdge AI filters interference and identifies the configured event category.
03
VerifyFor excavation and mining events, dual cameras obtain site imagery for remote review.
04
Locate & UploadEvent time, node position, classification, status, photos, and video are uploaded over 4G.
05
Alert & TraceOperators confirm the event, dispatch personnel when required, and retain the complete event record.

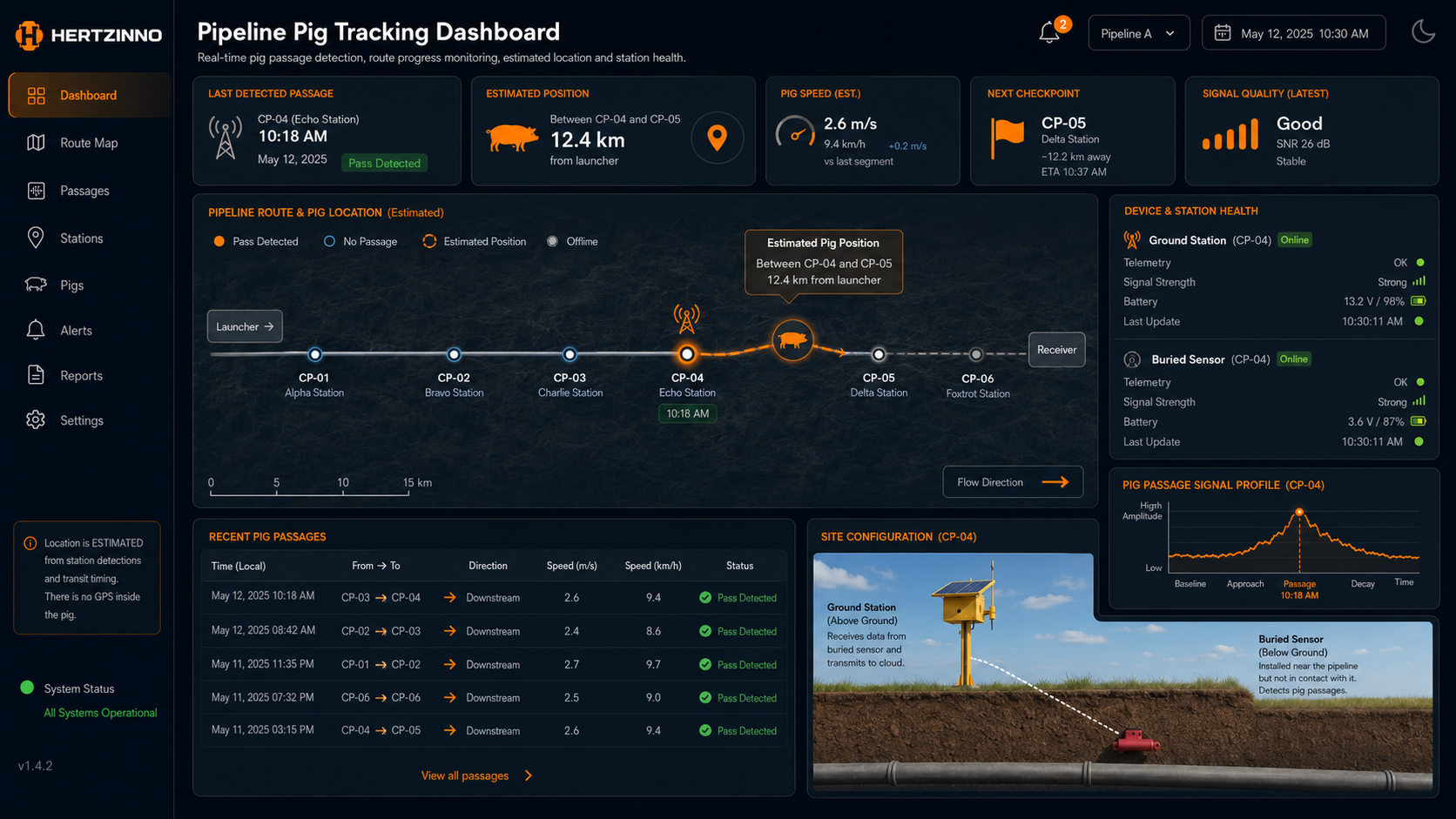

Platform & Integration
Manage nodes, events, evidence, and location in one platform.
The monitoring platform centralizes multi-region field nodes and converts each valid signal into operational information for review and response.
Node HealthBattery, communications, position, and operating status
Event ClassificationExcavation, pig passage, mining equipment, or interference
Map-Based LocationBeiDou/GPS and fixed-node position management
Site EvidencePhotos, video, waveform records, and event timeline
Remote AlertsControl center, web platform, and mobile access
System InterfacesHTTP and project-specific third-party integration
Technical Specifications
HZ-PS-20A product specifications.
| Sensor Configuration | High-sensitivity geophone / ground-vibration sensor |
|---|---|
| Typical Detection Distance | 0–100 m; actual range depends on soil, burial depth, event energy, background vibration, and site testing |
| Frequency Response | 10–200 Hz |
| Sampling Rate | 500 Hz |
| Edge Computing | MCU + ARM architecture, Linux operating system, local event analysis and classification |
| Visual Monitoring | Dual 1920 × 1080 HD cameras; automatic capture supported on configured alerts |
| Power System | Top solar panel up to 5 W + built-in DC 4.2 V, 22.5 Ah low-temperature lithium battery |
| Power Consumption | Monitoring mode < 30 mW; communication mode < 2 W |
| Communication & Positioning | 4G wireless communication; BeiDou + GPS dual-mode positioning |
| Data Interface | HTTP standard protocol; project-specific platform integration available |
| Protection & Environment | IP65; operating temperature -40°C to 70°C |
| Dimensions & Weight | 186 × 209 × 137 mm; weight < 2.5 kg |
| Installation | Monitoring host installed above ground on a field support or pipeline marker post; red vibration sensor buried in the surrounding soil near the monitored route |
Specifications and project configuration may vary by communications network, environmental conditions, event model, and deployment requirements. Final sensing range and node spacing should be verified through site assessment or pilot testing.
FAQ
Technical and deployment questions.
Does the sensor need to touch the pipeline?
No. The red vibration sensor is buried in the surrounding soil near the underground pipeline. It does not touch, clamp onto, or connect directly to the pipe wall.

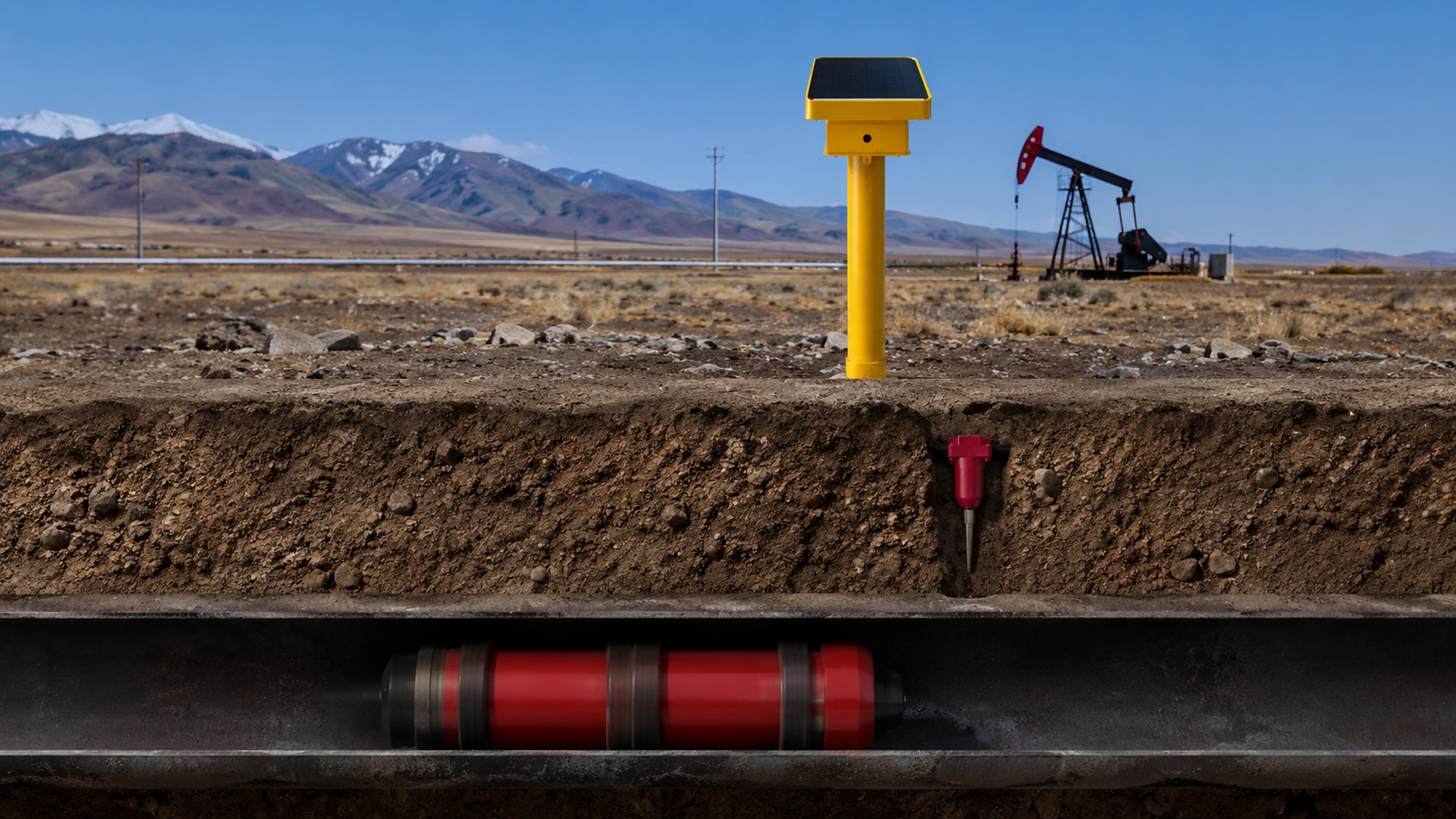

How does the system detect a cleaning pig?
The buried sensor records vibration and acoustic energy transmitted through the soil as the pig approaches, passes, and moves away from a selected monitoring point. Edge algorithms identify the characteristic passage signal and provide a time-and-location reference.
How far apart should monitoring nodes be installed?
There is no universal fixed interval. In remote, low-population areas, selected nodes may be several kilometers apart. At road crossings, construction zones, populated areas, pigging checkpoints, or other high-risk locations, spacing may be reduced to several hundred meters after site evaluation.
Can HZ-PS-20A be integrated with an existing control platform?
Yes. The system supports HTTP-based data exchange and can be integrated with a control center, SCADA environment, or project-specific third-party platform according to interface requirements.
Project Assessment
Build a practical monitoring plan around your route, checkpoints, or mine boundary.
Share the application type, route or boundary map, critical locations, environmental conditions, 4G coverage, and platform requirements. HERTZINNO can prepare a risk-based node layout and pilot recommendation.
