Silent Threats on the High Seas: How Acoustic Imaging is Revolutionizing LNG Carrier Safety and Maintenance
Enhancing operational efficiency and safety on LNG vessels with the HERTZINNO HA3 Series.

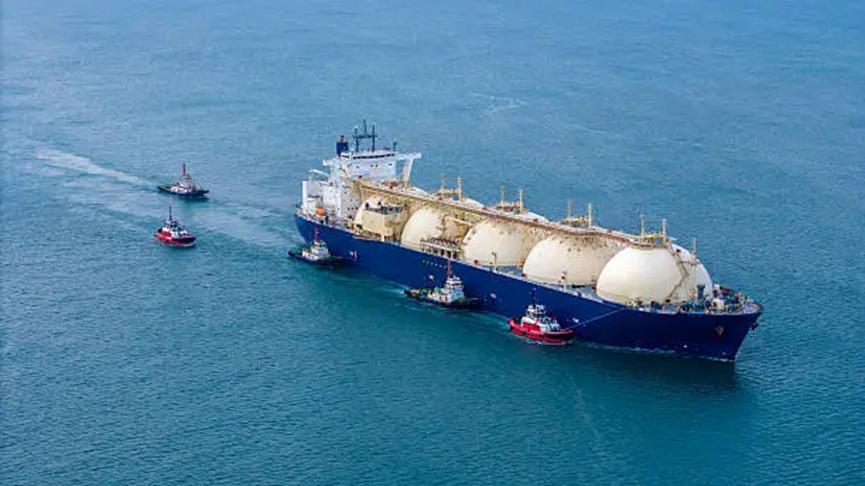

The vast, silent expanse of the ocean belies the immense power and potential risk resting within the hull of a Liquefied Natural Gas (LNG) carrier. These floating engineering marvels are the lifelines of the global energy trade, transporting super-cooled methane across continents. But within this complex industrial environment, invisible threats lurk—pressurized gas leaks, silent partial discharge in electrical systems, and the subtle acoustic signatures of failing mechanical components. For safety and maintenance teams, the challenge has always been the same: how do you find a silent, invisible enemy?
Traditional inspection methods on these vessels often mean working in explosive-risk zones, listening for leaks with inadequate tools, or shutting down systems for manual checks—costing time and money. This is where next-generation acoustic imaging technology, like the HERTZINNO HA3 Series, is transforming standard operating procedures.
The LNG Carrier: A World of Challenges

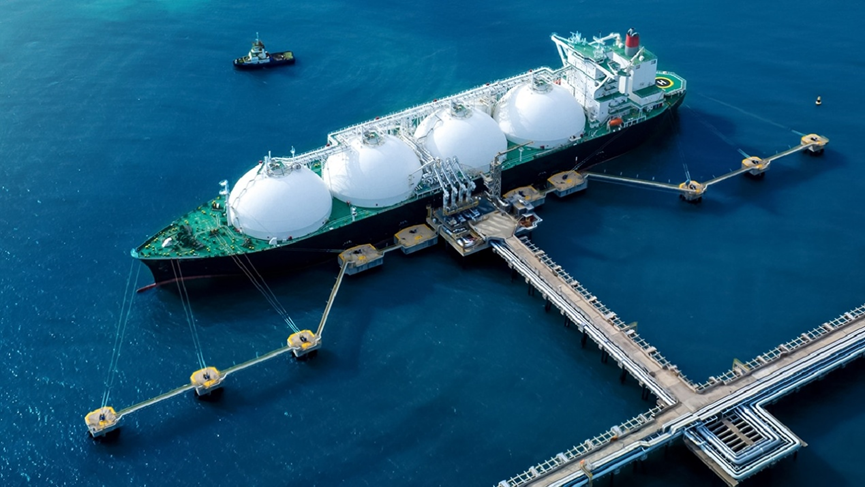

An LNG carrier is a self-contained industrial ecosystem. From the massive membrane tanks containing the liquid cargo at -162°C to the high-voltage electrical systems and the powerful engine room, it presents a unique combination of hazards.
Methane, the primary component of LNG, is odorless, colorless, and highly flammable. A leak in the cargo handling system, fuel lines, or vent masts is a critical safety incident. Traditional "sniffer" detectors find gas but struggle to locate the precise source, especially in windy, open-deck conditions.
The vessel's electrical network powers everything from navigation to the pumps keeping the LNG cold. Partial Discharge (PD) —a small, persistent spark within insulation—is a leading indicator of impending electrical failure and a potential ignition source. It's inaudible to the human ear and invisible to the naked eye.

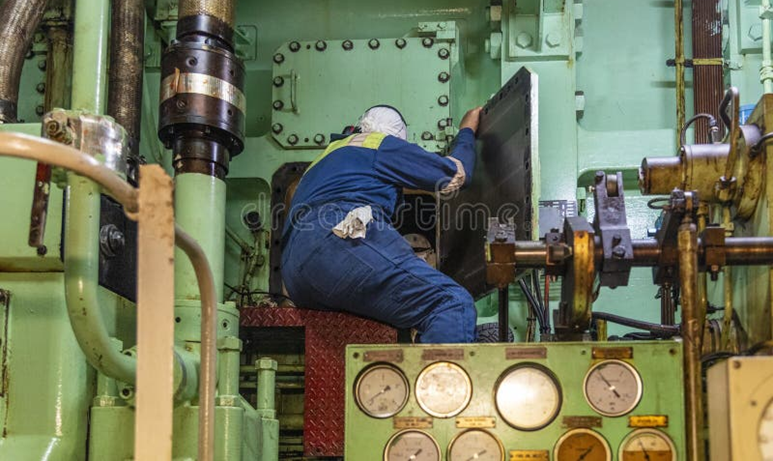

The engine room is a symphony of noise, making it incredibly difficult to isolate the high-frequency sound of a failing bearing, misaligned shaft, or cavitating pump until it's too late.
Introducing the HERTZINNO Solution: Seeing the Unseen
The HERTZINNO HA3 Series of handheld acoustic imaging cameras is engineered specifically for these demanding environments. More than just a listening device, it's a visual diagnostic tool that allows inspectors to "see" sound.
Imagine a safety officer on the deck of an LNG carrier, walking a path near a manifold. They carry the HA3TX, the intrinsically safe, ATEX-certified model designed for Zone 1 & 2 hazardous areas. With a simple point-and-scan motion, the camera's 144 high-sensitivity MEMS microphones and proprietary AI beamforming algorithms filter out the background noise of the sea and the ship's systems. Suddenly, a clear visual "sound map" appears on the screen, pinpointing a minute ultrasonic leak from a valve stem packing—a leak that could have led to a hazardous gas cloud or costly product loss. The ±1° localization accuracy tells them exactly which valve needs attention.
Later, in the electrical switchroom, the same inspector uses the HA3TX's dual-modality capability. Switching to the high-resolution 640×512 thermal sensor, they scan the high-voltage switchgear. Simultaneously, the acoustic array detects the characteristic high-frequency signature of surface partial discharge. The camera overlays the sound source onto the thermal image, automatically classifying the discharge type using AI and allowing the crew to schedule repair before a catastrophic failure and unplanned downtime.
Beyond Detection: Quantifying Risk with the HA3LX
For the most critical asset—the methane cargo itself—the HA3LX takes safety a step further. This model integrates TDLAS laser technology with acoustic imaging. Now, an engineer can stand a safe distance away (up to 30 meters) and not only visualize a gas leak from a flange or seal on a tank dome but also quantify the methane concentration in ppm·m. This transforms the inspection from a simple "pass/fail" check into a data-driven risk assessment, allowing for informed decisions on immediate repair vs. scheduled maintenance and calculating potential energy loss costs in real-time.
The Future of Maritime Maintenance
The days of relying solely on human senses for critical inspections are fading. On an LNG carrier, where safety, efficiency, and operational uptime are paramount, the HA3 Series offers a smarter, non-contact approach. It empowers crews to:
From the gas-tight compartments to the engine room, the HERTZINNO HA3 Series is putting the power to visualize the invisible threats in the hands of maritime professionals, ensuring that these vital vessels continue to sail safely and efficiently into the future
.
Ready to see how HERTZINNO can transform your vessel's inspection protocol?
Explore the HA3 Series | Contact our team for a personalized demo.
HERTZINNO – Hear the Invisible, See the Future.
