The True Cost of Compressed Air Leaks in 2025: How 128-Channel Acoustic Imaging Delivers 6-Month ROI

Every plant manager knows compressed air is expensive. What's shocking is how much of it literally disappears into thin air.

The U.S. Department of Energy has tracked industrial compressed air systems for decades. Their finding? The average manufacturing plant loses 20% to 30% of total compressed air output to leaks. In poorly maintained systems, that number hits 40%–50%.

Let's make this real. A single 1mm leak in a 7-bar system running 6,000 hours annually wastes approximately $1,500 in electricity every year. A 5mm leak? That's $38,000 annually—the cost of a new forklift.

But finding these leaks has always been the hard part. Until now.

This comprehensive guide shows you how modern acoustic imaging—specifically Hertzino's third-generation HA3A with 128 MEMS microphones—turns leak detection from a slow manual hunt into a fast, visual, documentable process with typical payback under 6 months.

Table of Contents

• The Iceberg Cost of Compressed Air Leaks

• Interactive Leak Cost Calculator

• Why Traditional Leak Detection Fails

• The HA3A Advantage: 128-Channel Acoustic Imaging

• Detection Technology Comparison

• The Leak Hotspot Map: Where to Look First

• From Cost to Action: A Four-Step ROI Workflow

• HA3A in Action: Real-World Results

• FAQ: Compressed Air Leak Economics

• Technical Specifications: HA3A Acoustic Camera

• Conclusion & Next Steps

• Sources & Authority Citations



The Iceberg Cost of Compressed Air Leaks

Most plant managers see only the tip of the iceberg—a gradually increasing electricity bill. The real costs hide beneath the surface.

Direct Cost: Wasted Energy

Compressed air systems are notoriously inefficient. For every $1 of electricity consumed, only about $0.10–$0.15 worth of useful work reaches the point of use. The rest is lost as heat, friction—and leaks.

Precision cost formula:
Annual Leak Cost = Leak Orifice Area × Flow Velocity × Annual Operating Hours × Cost Per Unit of Compressed Air

Real-world reference table (based on $0.12/kWh electricity, 6,000 operating hours/year, 100 psi/7 bar pressure):

Calculations based on ISO 1217 standards. Actual leakage geometry varies; expect ±30% fluctuation range.

Hidden Costs: The Systemic Damage

Leaks don't just waste electricity—they degrade your entire production ecosystem:

• Pressure instability: When leak volume exceeds 20% of system output, pressure drops become unpredictable. Pneumatic tools lose torque; actuators respond slowly. Product quality suffers.

• Reduced equipment lifespan: Compressors cycle more frequently or run continuously to compensate. This accelerates wear on motors, drives, and bearings—increasing maintenance frequency and spare parts costs.

• Production losses: Severe pressure drops can halt production lines entirely. One automotive parts plant we studied lost 12 hours of production annually due to leak-induced pressure failures—costing $48,000 in unplanned downtime.

• Carbon emissions: Every 1,000 kWh of wasted electricity generates approximately 700 kg of CO₂ (based on U.S. grid average). Under emerging carbon accounting standards, this becomes a real financial liability.

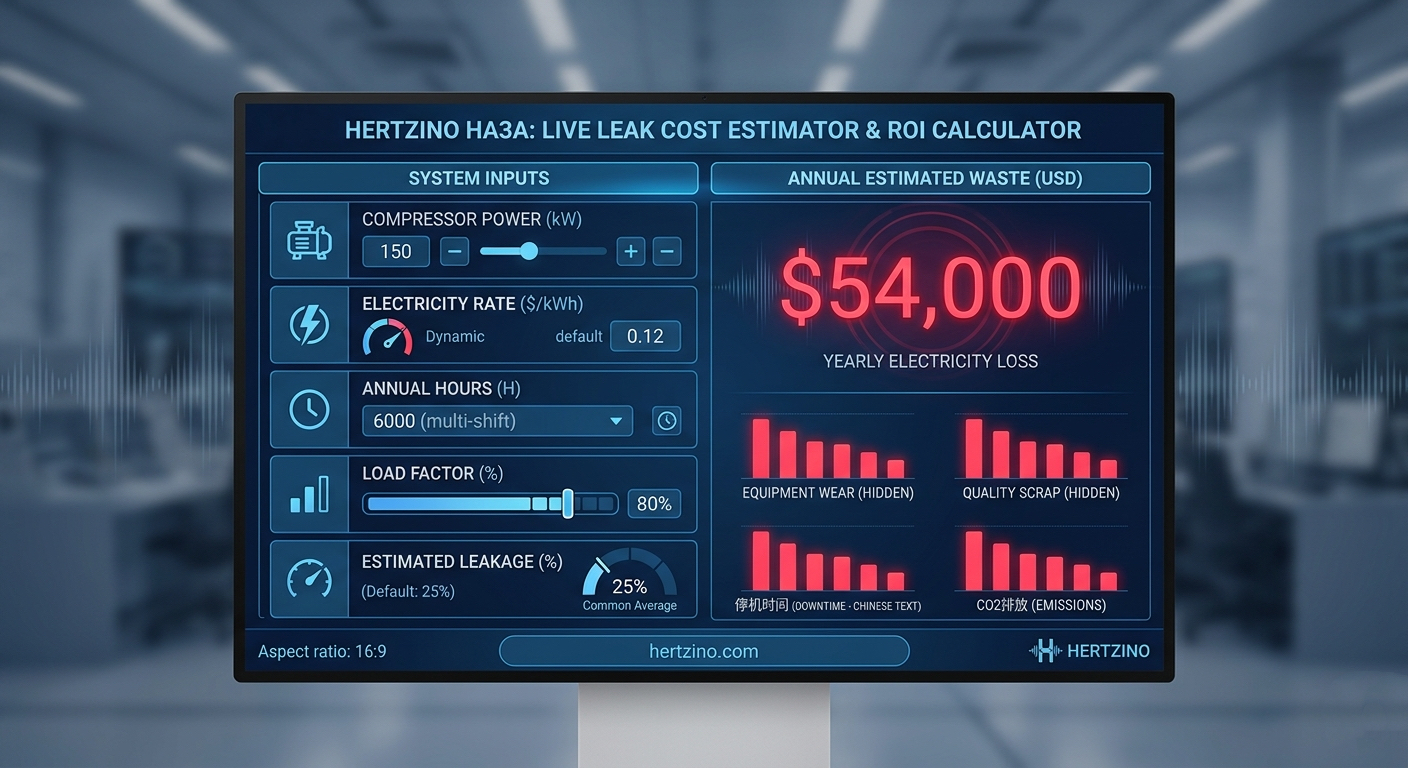

Interactive Leak Cost Calculator

Generic calculators ask for one input. Ours provides two pathways for maximum accuracy—because every plant starts with different data.

Path A: Compressor-Based Estimate (Recommended)

Use this when you know your compressor specifications.

Output: $54,000 estimated annual leak cost

Path B: Electricity Bill Shortcut

Use this when you know your total annual compressed air electricity spend.

Output: $45,000 estimated annual leak cost

Leakage Rate Self-Assessment Tool

Not sure what leakage rate to use? Answer these five questions:

1. When was your last formal leak survey?

   • Within 12 months (-5%)

   • 1–3 years ago (baseline)

   • Never (+10%)

2. What percentage of fittings are quick-connects?

   • <20% (-5%)

   • 20–50% (baseline)

   • 50% (+10%)

3. Do you leave idle equipment pressurized?

   • No, we isolate (-5%)

   • Sometimes (baseline)

   • Yes, always (+10%)

4. Age of distribution piping

   • <5 years (-5%)

   • 5–15 years (baseline)

   • 15 years (+10%)

5. Have you had pressure instability complaints?

   • No (-5%)

   • Occasionally (baseline)

   • Frequently (+10%)

Scoring: Baseline 20%. Adjust based on answers to get a plant-specific starting estimate (range: 5%–50%).

Why Traditional Leak Detection Fails

Before investing in solutions, it's worth understanding why most leak programs stall.

The Four Barriers to Effective Leak Management

1. Accessibility: Overhead piping, dense manifolds, and crowded mechanical spaces make physical inspection difficult and time-consuming.

2. Background noise: Industrial environments are loud. Traditional ultrasonic detectors require trained ears to distinguish leak sounds from machinery noise.

3. Documentation: Finding a leak is one thing. Documenting it for work orders, justifying repair budgets, and tracking progress is another.

4. Prioritization: Without visual evidence of relative leak size, maintenance teams struggle to prioritize which leaks to fix first.

This is why many plants know they have leaks but never successfully fix them. The gap between "knowing" and "finding" is simply too wide.

The HA3A Advantage: 128-Channel Acoustic Imaging

Hertzino's third-generation acoustic camera, the HA3A, was designed specifically to solve these four barriers.

What Makes HA3A Different

128 Low-Noise MEMS Microphones
Unlike basic detectors with a single sensor, the HA3A uses a 128-channel circular MEMS microphone array. This isn't just more microphones—it's a fundamentally different approach to sound localization.

Beamforming Technology with ±1° Accuracy
The HA3A's optimized circular array design, paired with advanced beamforming algorithms, achieves ±1° localization accuracy. At 1 meter distance, this means ≤1cm positioning error at 40kHz. It can clearly differentiate dense acoustic sources that would blend together using lesser technology.

Real-Time Visual Sound Localization
Instead of listening for beeps or interpreting audio cues, you simply look at the HA3A's screen. Leaks appear as colorful "hot spots" overlaid on the live camera image. You see exactly where the sound is coming from—not just that sound exists somewhere in the area.

Multi-Mode Positioning with Integrated Laser Rangefinder
The built-in laser rangefinder automatically measures distance to the target, ensuring accurate sound source localization regardless of distance. No manual distance input required.

Comprehensive Detection Capabilities

• Gas leakage detection

• Vacuum leak detection

• Multiple sound sources detection

• Real-time sound source localization

• Mechanical fault diagnosis

Workflow Integration Features

The HA3A isn't just a detection tool—it's a complete inspection system:

The Documentation Advantage

This is where HA3A transforms leak detection from a maintenance task into a management tool. Each detected leak becomes a documented asset:

• Visual image showing exact leak location

• Sound intensity data for severity ranking

• Distance measurement from laser rangefinder

• Notes and tags for work order creation

• Before/after comparison capability

For plant managers justifying inspection budgets and maintenance teams tracking progress, this documentation is invaluable.

Detection Technology Comparison

Here's how HA3A's 128-channel acoustic imaging stacks against traditional methods:

Why 128 Channels Matter

More microphones means:

• Higher spatial resolution—distinguish leaks inches apart

• Better signal-to-noise ratio—find leaks in louder environments

• More accurate localization—fewer false positives

• Faster scanning—cover more area in less time

The Leak Hotspot Map: Where to Look First

Leaks don't happen randomly. They cluster where components connect, move, or age. Use this visual guide to prioritize inspection routes with your HA3A.

High-Probability Leak Locations (Ranked)

The "Silent Leak" Zones (Where HA3A Excels)

Three areas where traditional detection fails but acoustic imaging works:

1. Above suspended ceilings: Warm, moist air rises—overhead lines face constant condensation cycles that corrode fittings. HA3A sees them from the floor.

2. Behind control cabinets: Dense manifolds create acoustic shadowing; multiple connections in tight spaces. HA3A's 128 channels differentiate individual leak sources.

3. Along uninsulated outdoor runs: Temperature swings cause repeated expansion/contraction, loosening joints. HA3A's laser rangefinder ensures accuracy at distance.

From Cost to Action: A Four-Step ROI Workflow

Once you've estimated your exposure, follow this practical workflow to convert data into savings using HA3A.

Step 1: Estimate Exposure

Use the calculator above to test low, medium, and high leakage scenarios. Determine whether your annual burden justifies a focused inspection campaign.

ROI Checkpoint: If estimated annual loss > $10,000, proceed.

Step 2: Locate with HA3A

Don't turn leak detection into a months-long manual hunt.

• Start with compressors, dryers, and main headers (20 minutes)

• Move to manifolds, drops, and valve packs (30 minutes)

• Inspect overhead lines and hard-to-reach areas (20 minutes)

• Check idle equipment that stays pressurized (15 minutes)

With HA3A, a full plant survey typically takes 2–4 hours—not days or weeks.
For each detected leak:

1. Capture image with sound overlay

2. Laser rangefinder automatically records distance

3. Add notes (text, voice, photos, tags)

4. Severity is visually apparent from hot spot size/intensity

5. Save or forward immediately

ROI Checkpoint: One day of HA3A imaging typically identifies 5–20x more leaks than traditional methods in the same time.

Step 3: Prioritize & Repair

Not all leaks are equal. Use HA3A documentation to rank:

Typical repair methods:

• Tighten fittings (15% of leaks)

• Replace seals/O-rings (40% of leaks)

• Replace hoses/fittings (30% of leaks)

• Install isolation valves on idle equipment (10% of leaks)

• Reroute/redesign problem connections (5% of leaks)

Step 4: Verify & Institutionalize

Repairing leaks once isn't enough. Leaks return.

• Re-inspect repaired areas with HA3A to verify fix—capture "after" images

• Generate before/after reports showing cost savings for management

• Document recurring patterns (e.g., certain machine types always leak)

• Establish a routine: Quarterly scans for high-risk areas; annual full-plant surveys

• Integrate with CMMS using HA3A's exportable files and notes

ROI Checkpoint: Plants with active leak management programs maintain leakage rates below 10%—compared to 30%+ for reactive plants.

HA3A in Action: Real-World Results

Case Study: Automotive Parts Manufacturer

Situation: 24/7 operation, 200 hp compressor system, complaints of pressure drops during peak shifts.

HA3A Survey: 3.5 hours covered entire 50,000 sq ft facility.

Findings: 47 discrete leaks identified, with 12 classified as critical.

Results:

• Total identified waste: $68,000/year

• Repairs completed: 38 leaks in first month

• Actual savings realized: $52,000/year

• HA3A payback period: 4.2 months

Case Study: Food Processing Plant

Situation: 150 hp system, aging distribution lines, rising electricity costs.

HA3A Survey: 2 hours covered production area and compressor room.

Findings: 31 leaks, including 5 in overhead lines never previously inspected.

Results:

• Total identified waste: $41,000/year

• System pressure increased by 12 psi after repairs

• Compressor runtime reduced by 18%

• HA3A payback period: 5.1 months

FAQ: Compressed Air Leak Economics & Technology

How accurate is a leak cost calculator?

It's a planning estimator, not an audit-grade tool. It helps frame annual exposure quickly. For precise measurement, combine with HA3A's quantified leak survey and documentation.

What leakage percentage should I start with?

If you don't know your current level, 20% is a practical baseline. DOE and ENERGY STAR both identify this range as common. Compare against lower (10%) and higher (30–40%) scenarios based on plant age and maintenance history.

Why can't I just estimate savings and skip detection?

Because the estimate doesn't tell you where the leaks are. A cost number without a repair list doesn't save money. HA3A turns cost estimates into actionable work orders.

What's the difference between ultrasonic detectors and acoustic imaging?

Ultrasonic detectors require point-by-point scanning and trained interpretation of audio cues. Acoustic imaging (like HA3A) shows you leaks visually—you see the sound overlay on a live camera image. It's faster, more accurate, and requires less training.

Why 128 microphones? Isn't 64 enough?

More microphones mean:

• Higher spatial resolution (distinguish closer leak sources)

• Better performance in noisy environments

• More accurate localization (HA3A achieves ±1° / ≤1cm at 1m)

• Faster scanning—cover more area in less time

Can HA3A detect vacuum leaks?

Yes. The HA3A supports both gas leakage detection and vacuum leak detection, making it versatile for various industrial applications.

What's the typical payback period for HA3A?

Most industrial facilities recover HA3A investment within 4–6 months through identified leak savings alone—not counting productivity gains or extended compressor life. Plants running 24/7 operations often see payback in under 4 months.

How do I maintain low leakage long-term?

• Assign ownership: Make one person responsible

• Set targets: Maintain leakage below 10%

• Schedule surveys: Quarterly spot checks with HA3A; annual comprehensive scans

• Track metrics: Monitor system-specific power (kW/100 CFM)

• Train operators: Show them how to spot and report using HA3A's simple interface

Technical Specifications: HA3A Acoustic Camera

Package Contents

1. Acoustic Imaging Camera HA3A

2. USB Charger

3. Charging Dock

4. Spare Battery

5. Carrying Case

6. User Manual

7. Factory Test Report

8. Accessory Kit

Safety Notices

• Laser Safety: Never aim the laser rangefinder at human eyes

• LED Light: Avoid prolonged direct viewing of LED light sources

Conclusion & Next Steps

Compressed air leaks are not a maintenance nuisance—they're a financial leak in your profit pipeline. A 20% leakage rate in a medium-sized plant often represents $50,000–$150,000 in annual wasted electricity, plus hidden costs in equipment wear and production instability.

The path forward is straightforward:

1. Quantify your exposure using our interactive calculator

2. Inspect efficiently with HA3A's 128-channel acoustic imaging

3. Repair systematically using visual documentation to prioritize

4. Verify and repeat with HA3A's before/after comparison

With typical payback under 6 months, HA3A isn't an expense—it's an investment that pays for itself multiple times over.

Sources & Authority Citations

• U.S. Department of Energy. Improve Compressed Air System Performance: A Sourcebook for Industry

• ENERGY STAR. Compressed Air System Leaks: Prevent wasted energy with a leak prevention program

• U.S. Department of Energy. AIRMaster+ Compressed Air System Assessment Tool

• Compressed Air Challenge. Best Practices for Compressed Air Systems

• ISO 1217:2009. Displacement compressors — Acceptance tests
